NCP694D08HT1G

In Stock: 4,500

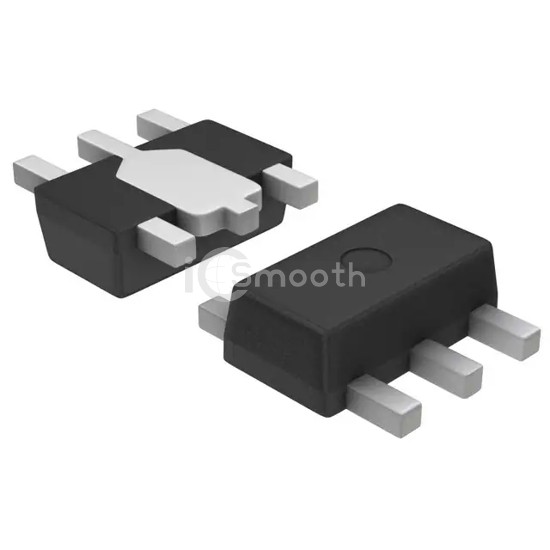

NCP694D08HT1G - onsemi - PMIC - Voltage Regulators - Linear
REF: NCP694D08HT1G onsemi
NCP694D08HT1G

onsemi

IC REG LINEAR 0.8V 1A SOT89-5

NCP694D08HT1G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 0.8V 1A SOT89-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case SOT-89-5/6, current - output 1A.

Datasheet Request a Quote

In Stock: 4,500

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)-
Voltage Dropout (Max)0.72V @ 1A (Typ)
Current - Output1A
Current - Quiescent (Iq)100 µA
Current - Supply (Max)-
PSRR70dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseSOT-89-5/6
Supplier Device PackageSOT-89-5
