NCP691MNADJT2G

In Stock: 2,985

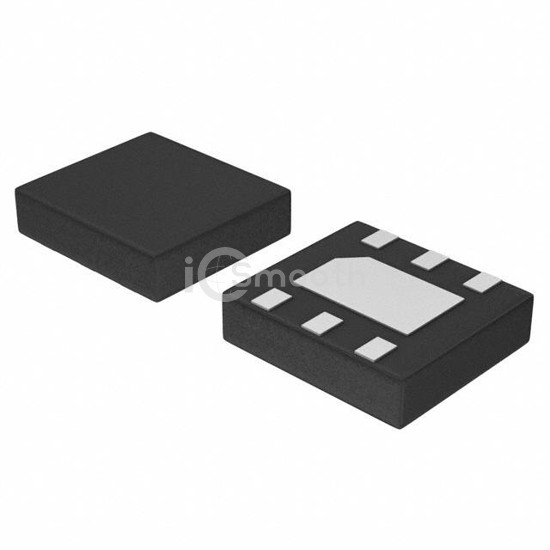

NCP691MNADJT2G - onsemi - PMIC - Voltage Regulators - Linear
REF: NCP691MNADJT2G onsemi
NCP691MNADJT2G

onsemi

IC REG LINEAR POS ADJ 1A 6DFN

NCP691MNADJT2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 1A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-VDFN Exposed Pad, current - supply (max) 240 µA.

Datasheet Request a Quote

In Stock: 2,985

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)1.25V
Voltage - Output (Max)5V
Voltage Dropout (Max)0.47V @ 1A
Current - Output1A
Current - Quiescent (Iq)200 µA
Current - Supply (Max)240 µA
PSRR62dB ~ 40dB (120Hz ~ 10kHz)
Control FeaturesEnable
Protection FeaturesOver Temperature, Short Circuit
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case6-VDFN Exposed Pad
Supplier Device Package6-DFN (3x3)
