Name: NCP690MNADJT2G
Brand: onsemi
SKU: NCP690MNADJT2G
Price: 1.65 USD
Availability: InStock

REF: NCP690MNADJT2G onsemi

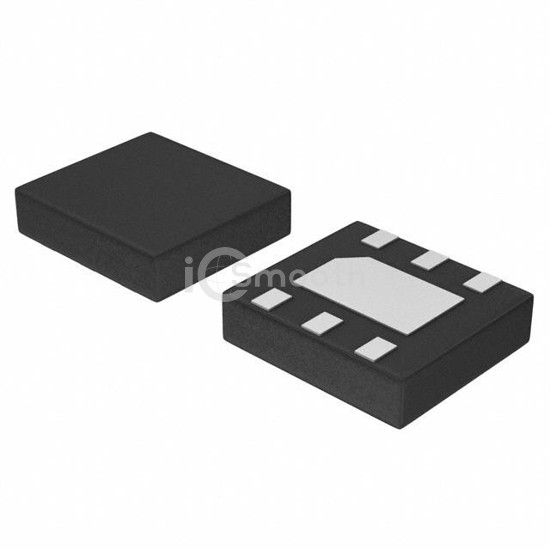

NCP690MNADJT2G

IC REG LINEAR POS ADJ 1A 6DFN

NCP690MNADJT2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 1A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-VDFN Exposed Pad, current - supply (max) 240 µA.

Datasheet Request a Quote

In Stock: 3,976

Tiered Pricing USD

1+ $1.6500 —

10+ $1.0200 -38%

25+ $0.8544 -48%

100+ $0.6671 -60%

250+ $0.5750 -65%

500+ $0.5184 -69%

1,000+ $0.4709 -71% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	1.25V
Voltage - Output (Max)	5V
Voltage Dropout (Max)	0.47V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	200 µA
Current - Supply (Max)	240 µA
PSRR	62dB ~ 40dB (120Hz ~ 10kHz)
Control Features	-
Protection Features	Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-DFN (3x3)
