NCP690MN50T2G

In Stock: 6,367

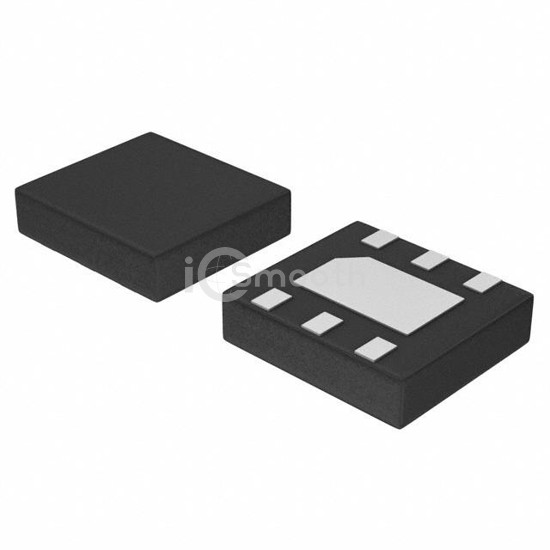

NCP690MN50T2G - onsemi - PMIC - Voltage Regulators - Linear
REF: NCP690MN50T2G onsemi
NCP690MN50T2G

onsemi

IC REG LINEAR 5V 1A 6DFN

NCP690MN50T2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 5V 1A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-VDFN Exposed Pad, current - supply (max) 240 µA.

Datasheet Request a Quote

In Stock: 6,367

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.21V @ 1A
Current - Output1A
Current - Quiescent (Iq)200 µA
Current - Supply (Max)240 µA
PSRR-
Control Features-
Protection FeaturesOver Temperature, Short Circuit
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case6-VDFN Exposed Pad
Supplier Device Package6-DFN (3x3)
