NCP630GD2TG

In Stock: 451

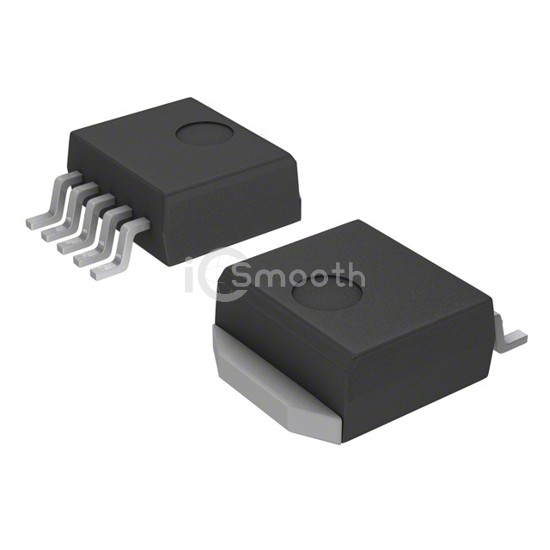

NCP630GD2TG - onsemi - PMIC - Voltage Regulators - Linear
REF: NCP630GD2TG onsemi
NCP630GD2TG

onsemi

IC REG LINEAR 3.47V 3A D2PAK-5

NCP630GD2TG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 3.47V 3A D2PAK-5. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 2 mA.

Datasheet Request a Quote

In Stock: 451

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)12V
Voltage - Output (Min/Fixed)3.47V
Voltage - Output (Max)-
Voltage Dropout (Max)1.25V @ 3A
Current - Output3A
Current - Quiescent (Iq)1 mA
Current - Supply (Max)2 mA
PSRR85dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature0°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device PackageD2PAK-5
