Name: NCP630AD2TG
Brand: onsemi
SKU: NCP630AD2TG
Availability: InStock

REF: NCP630AD2TG onsemi

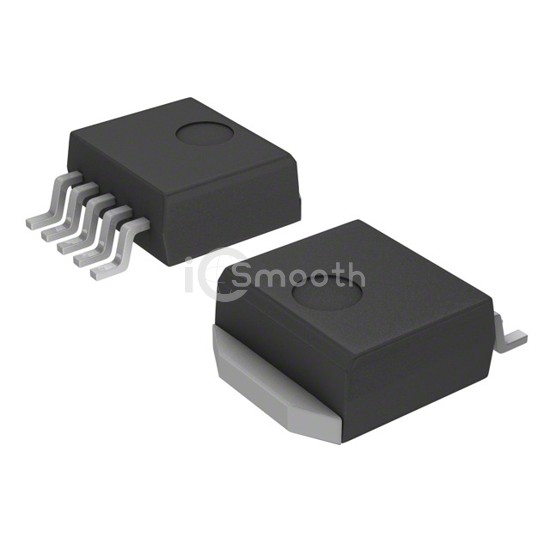

NCP630AD2TG

IC REG LINEAR POS ADJ 3A D2PAK-5

NCP630AD2TG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 3A D2PAK-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 2 mA.

Datasheet Request a Quote

In Stock: 4,415

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	12V
Voltage - Output (Min/Fixed)	1.216V
Voltage - Output (Max)	10.75V
Voltage Dropout (Max)	1.25V @ 3A
Current - Output	3A

Current - Quiescent (Iq)	1 mA
Current - Supply (Max)	2 mA
PSRR	85dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	D2PAK-5
