Name: NCP59800BMNADJTBG
Brand: onsemi
SKU: NCP59800BMNADJTBG
Price: 0.66 USD
Availability: InStock

REF: NCP59800BMNADJTBG onsemi

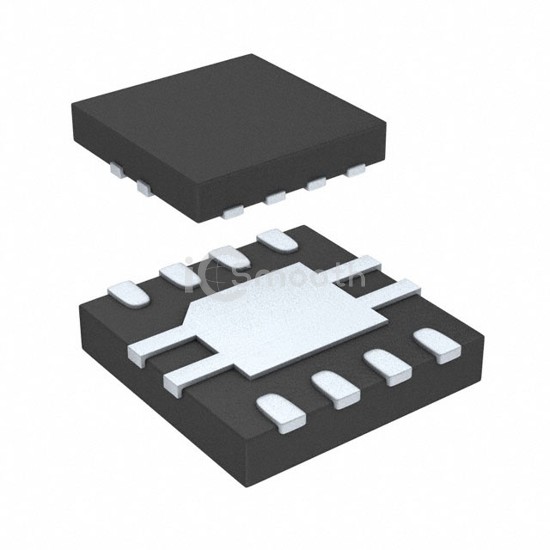

NCP59800BMNADJTBG

IC REG LINEAR POS ADJ 1A 8DFN

NCP59800BMNADJTBG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 1A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VDFN Exposed Pad, current - output 1A.

Datasheet Request a Quote

In Stock: 9,683

Tiered Pricing USD

1+ $0.6600 —

10+ $0.4690 -29%

25+ $0.4212 -36%

100+ $0.3679 -44%

250+ $0.3426 -48%

500+ $0.3273 -50%

1,000+ $0.3148 -52% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	6V
Voltage Dropout (Max)	0.5V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	450 µA
Current - Supply (Max)	-
PSRR	77dB ~ 27dB (100Hz ~ 1MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	8-DFN (3x3)
