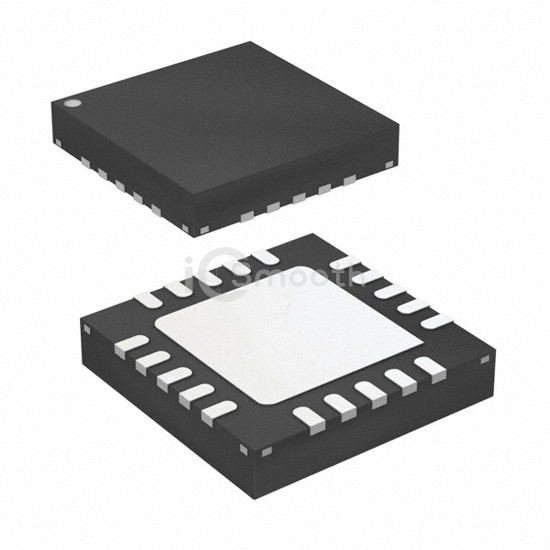

Name: NCP59744MN2ADJTBG
Brand: onsemi
SKU: NCP59744MN2ADJTBG
Price: 1.69 USD
Availability: InStock

REF: NCP59744MN2ADJTBG onsemi

NCP59744MN2ADJTBG

IC REG LINEAR POS ADJ 3A 20QFN

NCP59744MN2ADJTBG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 3A 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-VQFN Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 8,626

Tiered Pricing USD

1+ $1.6900 —

10+ $1.2420 -27%

25+ $1.1288 -33%

100+ $1.0045 -41%

250+ $0.9452 -44%

500+ $0.9095 -46%

1,000+ $0.8801 -48% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	3.6V
Voltage Dropout (Max)	0.16V @ 3A
Current - Output	3A

Current - Quiescent (Iq)	-
Current - Supply (Max)	-
PSRR	72dB ~ 50dB (1kHz ~ 1MHz)
Control Features	Enable, Power Good, Soft Start
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-VQFN Exposed Pad
Supplier Device Package	20-QFN (5x5)
