Name: NCP59301DS25R4G
Brand: onsemi
SKU: NCP59301DS25R4G
Price: 4.10 USD
Availability: InStock

REF: NCP59301DS25R4G onsemi

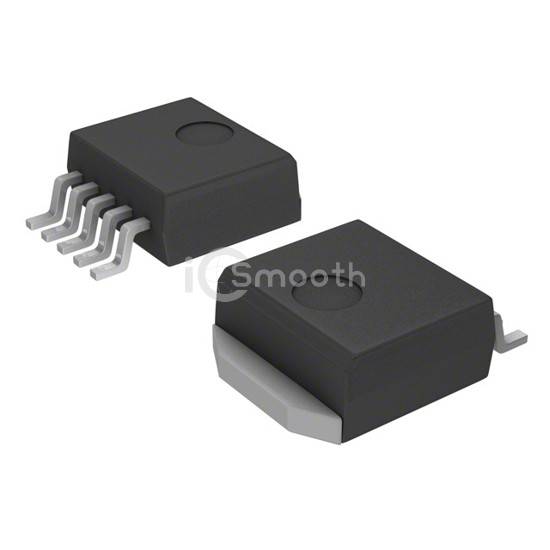

NCP59301DS25R4G

IC REG LINEAR 2.5V 3A D2PAK-5

NCP59301DS25R4G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 2.5V 3A D2PAK-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - output 3A.

Datasheet Request a Quote

In Stock: 457

Tiered Pricing USD

1+ $4.1000 —

10+ $2.6430 -36%

25+ $2.2624 -45% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	13.5V
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5V @ 3A
Current - Output	3A

Current - Quiescent (Iq)	-
Current - Supply (Max)	-
PSRR	-
Control Features	Enable, Error Flag
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	D2PAK-5
