NCP590MNDPTAG

In Stock: 63,860

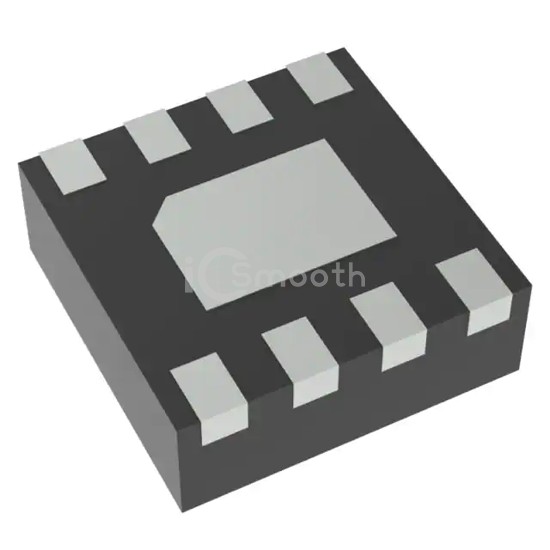

NCP590MNDPTAG - onsemi - PMIC - Voltage Regulators - Linear
REF: NCP590MNDPTAG onsemi
NCP590MNDPTAG

onsemi

IC REG LINEAR 1.8V/2.8V 8DFN

NCP590MNDPTAG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 1.8V/2.8V 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-VFDFN Exposed Pad, current - supply (max) 250 µA.

Datasheet Request a Quote

In Stock: 63,860

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)1.8V, 2.8V
Voltage - Output (Max)-
Voltage Dropout (Max)-, 0.225V @ 300mA
Current - Output300mA, 300mA
Current - Quiescent (Iq)125 µA
Current - Supply (Max)250 µA
PSRR55dB (120Hz), 50dB ~ 40dB (120Hz ~ 1kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-VFDFN Exposed Pad
Supplier Device Package8-DFN (2x2)
