Name: NCP565D2TR4
Brand: onsemi
SKU: NCP565D2TR4
Price: 0.72 USD
Availability: InStock

REF: NCP565D2TR4 onsemi

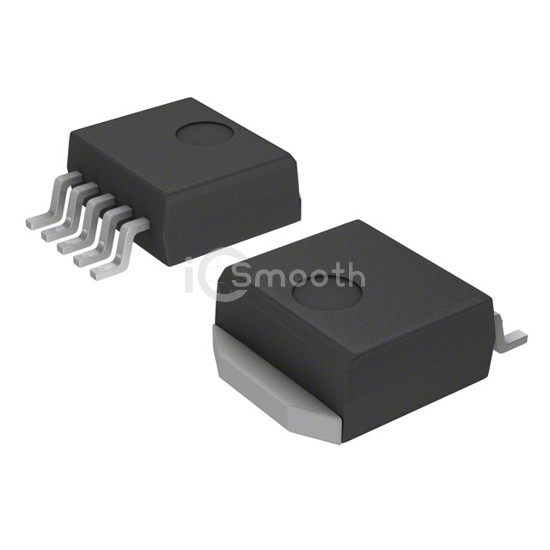

NCP565D2TR4

IC REG LIN POS ADJ 1.5A D2PAK-5

NCP565D2TR4 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN POS ADJ 1.5A D2PAK-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - output 1.5A.

Datasheet Request a Quote

In Stock: 5,080

Tiered Pricing USD

800+ $0.7170 —

1,600+ $0.6597 -8%

2,400+ $0.6306 -12%

4,000+ $0.6000 -16% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	9V
Voltage - Output (Min/Fixed)	0.9V
Voltage - Output (Max)	7.7V
Voltage Dropout (Max)	1.3V @ 1.5A
Current - Output	1.5A

Current - Quiescent (Iq)	3 mA
Current - Supply (Max)	-
PSRR	85dB ~ 75db (120Hz ~ 1kHz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	D2PAK-5
