NCP563SQ25T1G

In Stock: 2,792

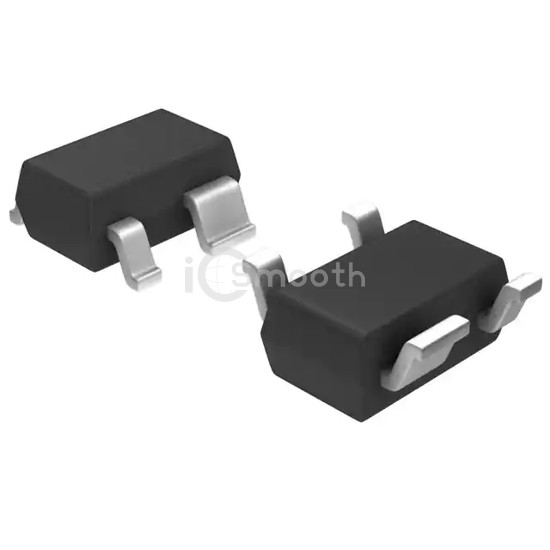

NCP563SQ25T1G - onsemi - PMIC - Voltage Regulators - Linear
REF: NCP563SQ25T1G onsemi
NCP563SQ25T1G

onsemi

IC REG LINEAR 2.5V 80MA SC82AB

NCP563SQ25T1G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 2.5V 80MA SC82AB. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case SC-82A, SOT-343, current - supply (max) 6 µA.

Datasheet Request a Quote

In Stock: 2,792

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)2.5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.4V @ 80mA
Current - Output80mA
Current - Quiescent (Iq)1 µA
Current - Supply (Max)6 µA
PSRR-
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseSC-82A, SOT-343
Supplier Device PackageSC-82AB
