NCP5109ADR2G

In Stock: 3,781

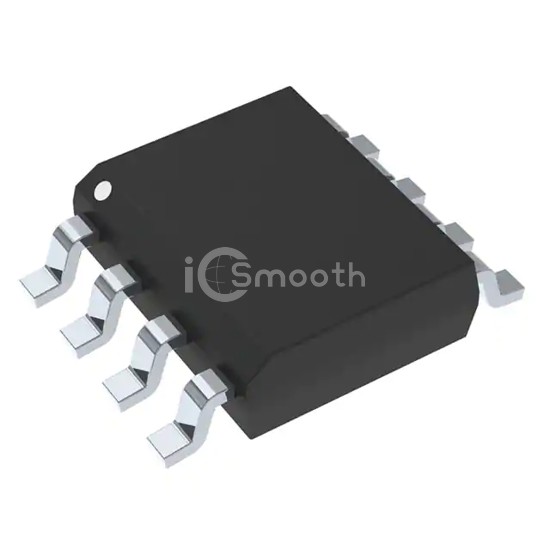

NCP5109ADR2G - onsemi - PMIC - Gate Drivers
REF: NCP5109ADR2G onsemi
NCP5109ADR2G

onsemi

IC GATE DRVR HALF-BRIDGE 8SOIC

NCP5109ADR2G is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR HALF-BRIDGE 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 10V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 3,781

Tiered Pricing USD
1+ $1.8600 —
10+ $1.1560 -38%
25+ $0.9708 -48%
100+ $0.7614 -59%
250+ $0.6585 -65%
500+ $0.5952 -68%
1,000+ $0.5422 -71% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2.3V
Current - Peak Output (Source, Sink)250mA, 500mA
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)200 V
Rise / Fall Time (Typ)85ns, 35ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
