NCP4688DMU25TCG

In Stock: 29,803

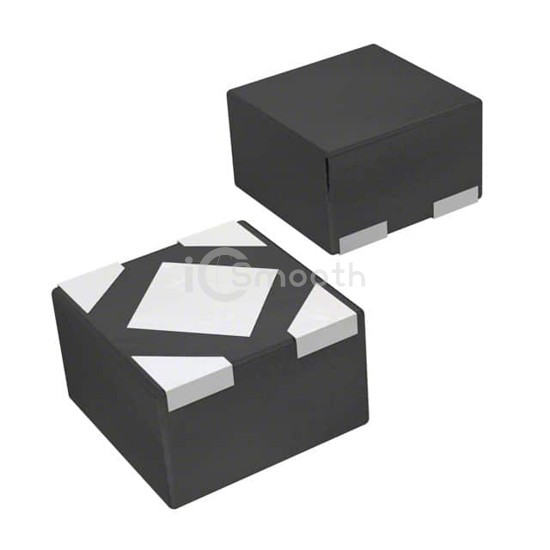

NCP4688DMU25TCG - onsemi - PMIC - Voltage Regulators - Linear
REF: NCP4688DMU25TCG onsemi
NCP4688DMU25TCG

onsemi

IC REG LINEAR 2.5V 150MA 4UDFN

NCP4688DMU25TCG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 2.5V 150MA 4UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-UDFN Exposed Pad, current - output 150mA.

Datasheet Request a Quote

In Stock: 29,803

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)5.25V
Voltage - Output (Min/Fixed)2.5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.31V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)100 µA
Current - Supply (Max)-
PSRR80dB ~ 65dB (1kHz ~ 100kHz)
Control FeaturesEnable
Protection FeaturesOver Current
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case4-UDFN Exposed Pad
Supplier Device Package4-UDFN (1.0x1.0)
