NCP4685EMU30TCG

In Stock: 2,725

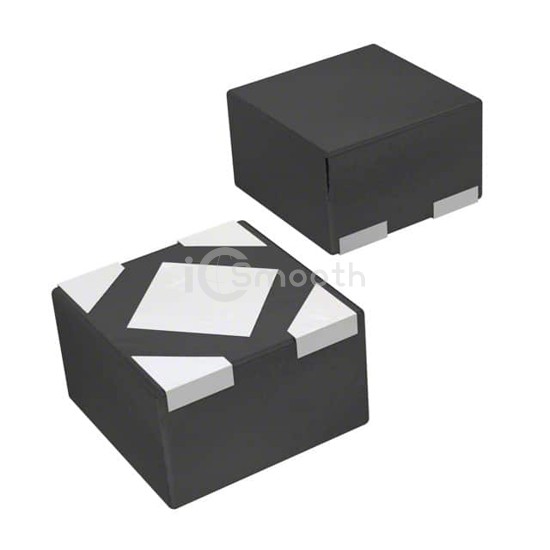

NCP4685EMU30TCG - onsemi - PMIC - Voltage Regulators - Linear
REF: NCP4685EMU30TCG onsemi
NCP4685EMU30TCG

onsemi

IC REG LINEAR 3V 150MA 4UDFN

NCP4685EMU30TCG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 3V 150MA 4UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-UDFN Exposed Pad, current - output 150mA.

Datasheet Request a Quote

In Stock: 2,725

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)5.25V
Voltage - Output (Min/Fixed)3V
Voltage - Output (Max)-
Voltage Dropout (Max)0.32V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)1.5 µA
Current - Supply (Max)-
PSRR30dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case4-UDFN Exposed Pad
Supplier Device Package4-UDFN (1.0x1.0)
