NCP4684EMX25TCG

In Stock: 4,518

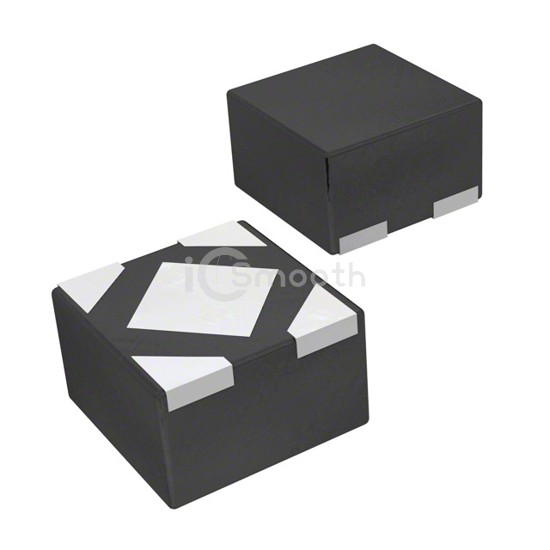

NCP4684EMX25TCG - onsemi - PMIC - Voltage Regulators - Linear
REF: NCP4684EMX25TCG onsemi
NCP4684EMX25TCG

onsemi

IC REG LINEAR 2.5V 150MA 4XDFN

NCP4684EMX25TCG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 2.5V 150MA 4XDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-XFDFN Exposed Pad, current - output 150mA.

Datasheet Request a Quote

In Stock: 4,518

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)5.25V
Voltage - Output (Min/Fixed)2.5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.4V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)2 µA
Current - Supply (Max)-
PSRR25dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case4-XFDFN Exposed Pad
Supplier Device Package4-XDFN (0.8x0.8)
