NCP3420MNR2G

In Stock: 3,612

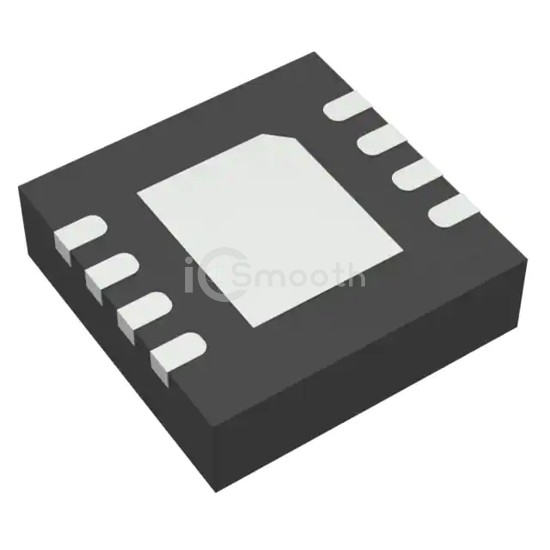

NCP3420MNR2G - onsemi - PMIC - Gate Drivers
REF: NCP3420MNR2G onsemi
NCP3420MNR2G

onsemi

IC GATE DRVR HALF-BRIDGE 8DFN

NCP3420MNR2G is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR HALF-BRIDGE 8DFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 150°C (TJ), voltage - supply 4.6V ~ 13.2V, package / case 8-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,612

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.6V ~ 13.2V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)-
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)35 V
Rise / Fall Time (Typ)16ns, 11ns
Operating Temperature0°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-VFDFN Exposed Pad
Supplier Device Package8-DFN (3x3)
