NCP3337MN500R2G

In Stock: 5,225

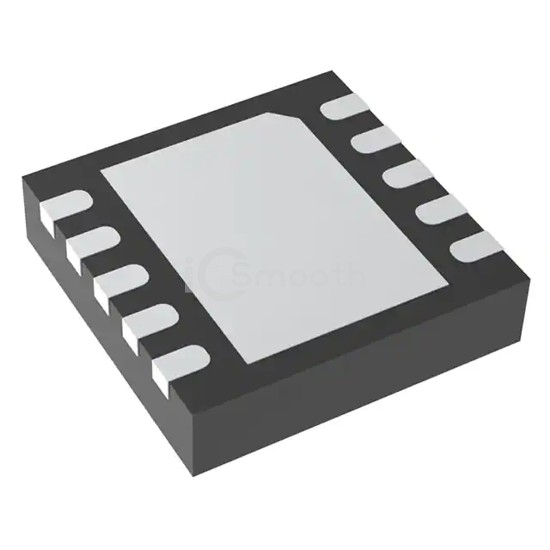

NCP3337MN500R2G - onsemi - PMIC - Voltage Regulators - Linear
REF: NCP3337MN500R2G onsemi
NCP3337MN500R2G

onsemi

IC REG LINEAR 5V 500MA 10DFN

NCP3337MN500R2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 5V 500MA 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-VFDFN Exposed Pad, current - supply (max) 14 mA.

Datasheet Request a Quote

In Stock: 5,225

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)12V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.34V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)220 µA
Current - Supply (Max)14 mA
PSRR-
Control FeaturesEnable, Power Good
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case10-VFDFN Exposed Pad
Supplier Device Package10-DFN (3x3)
