Name: NCP3284MNTXG
Brand: onsemi
SKU: NCP3284MNTXG
Price: 3.76 USD
Availability: InStock

REF: NCP3284MNTXG onsemi

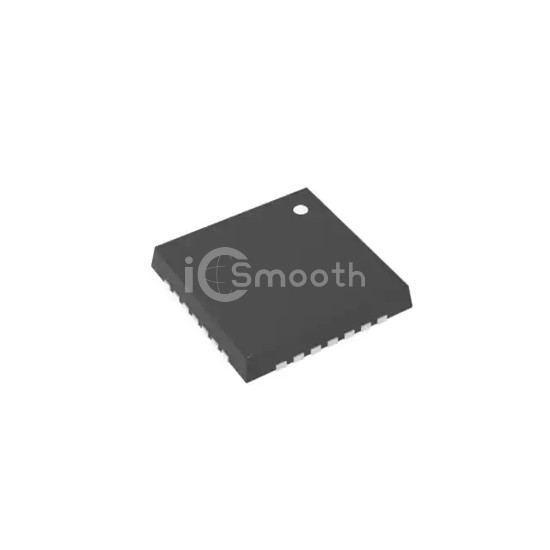

NCP3284MNTXG

IC GATE DRVR 25A INTEG POL

NCP3284MNTXG is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by onsemi. IC GATE DRVR 25A INTEG POL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C (TA), package / case 37-PowerWFQFN, current - output 30A.

Datasheet Request a Quote

In Stock: 6,289

Tiered Pricing USD

1+ $3.7600 —

10+ $2.8370 -25%

25+ $2.6060 -31%

100+ $2.3519 -37%

250+ $2.2308 -41%

500+ $2.1578 -43%

1,000+ $2.0977 -44% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	15.3V
Current - Output	30A
Frequency - Switching	500kHz, 600kHz, 800kHz, 1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 100°C (TA)
Mounting Type	Surface Mount
Package / Case	37-PowerWFQFN
Supplier Device Package	37-PQFN (5x6)
