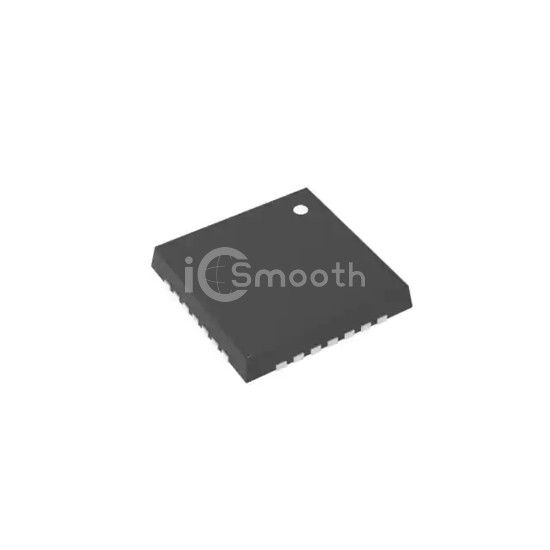

Name: NCP3284AMNTXG
Brand: onsemi
SKU: NCP3284AMNTXG
Price: 3.68 USD
Availability: InStock

REF: NCP3284AMNTXG onsemi

NCP3284AMNTXG

4.5V TO 18V, 30A(NCP3284)/ 35A(N

NCP3284AMNTXG is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by onsemi. 4.5V TO 18V, 30A(NCP3284)/ 35A(N. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C (TA), package / case 37-PowerWFQFN, current - output 35A.

Datasheet Request a Quote

In Stock: 3,960

Tiered Pricing USD

1+ $3.6800 —

10+ $2.7710 -25%

25+ $2.5444 -31%

100+ $2.2957 -38%

250+ $2.1770 -41%

500+ $2.1055 -43%

1,000+ $2.0466 -44% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	5.5V
Current - Output	35A
Frequency - Switching	500kHz, 600kHz, 800kHz, 1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 100°C (TA)
Mounting Type	Surface Mount
Package / Case	37-PowerWFQFN
Supplier Device Package	37-PQFN (5x6)
