Name: NCP1589AMNTXG
Brand: onsemi
SKU: NCP1589AMNTXG
Price: 1.42 USD
Availability: InStock

REF: NCP1589AMNTXG onsemi

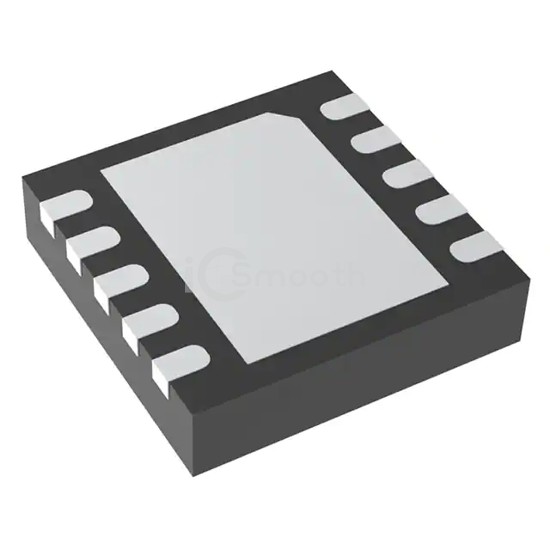

NCP1589AMNTXG

IC REG CTRLR BUCK 10DFN

NCP1589AMNTXG is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by onsemi. IC REG CTRLR BUCK 10DFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 13.2V, package / case 10-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,053

Tiered Pricing USD

1+ $1.4200 —

10+ $0.8730 -39%

25+ $0.7292 -49%

100+ $0.5659 -60%

250+ $0.4858 -66%

500+ $0.4365 -69%

1,000+ $0.3952 -72% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.5V ~ 13.2V
Frequency - Switching	300kHz

Duty Cycle (Max)	75%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Enable, Power Good
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
