Name: NCP1589AMNTWG
Brand: onsemi
SKU: NCP1589AMNTWG
Price: 0.74 USD
Availability: InStock

REF: NCP1589AMNTWG onsemi

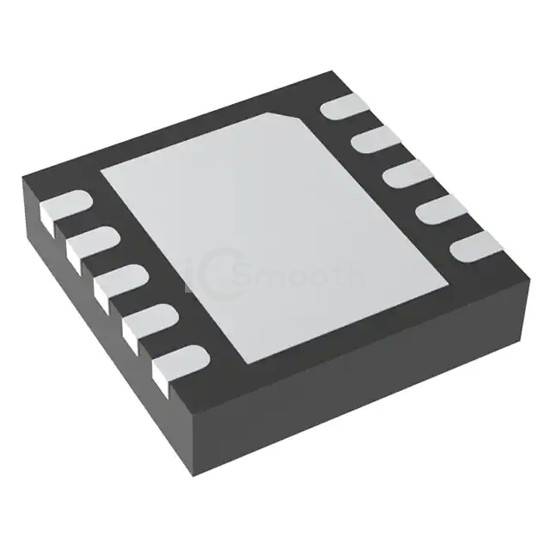

NCP1589AMNTWG

IC REG CTRLR BUCK 10DFN

NCP1589AMNTWG is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by onsemi. IC REG CTRLR BUCK 10DFN. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 13.2V, package / case 10-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,241

Tiered Pricing USD

1+ $0.7400 —

10+ $0.5300 -28%

25+ $0.4760 -36%

100+ $0.4169 -44%

250+ $0.3888 -47%

500+ $0.3718 -50%

1,000+ $0.3578 -52% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.5V ~ 13.2V
Frequency - Switching	300kHz

Duty Cycle (Max)	75%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Enable, Power Good
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
