Name: NCP156ABFCT100280T2G
Brand: onsemi
SKU: NCP156ABFCT100280T2G
Price: 0.50 USD
Availability: InStock

REF: NCP156ABFCT100280T2G onsemi

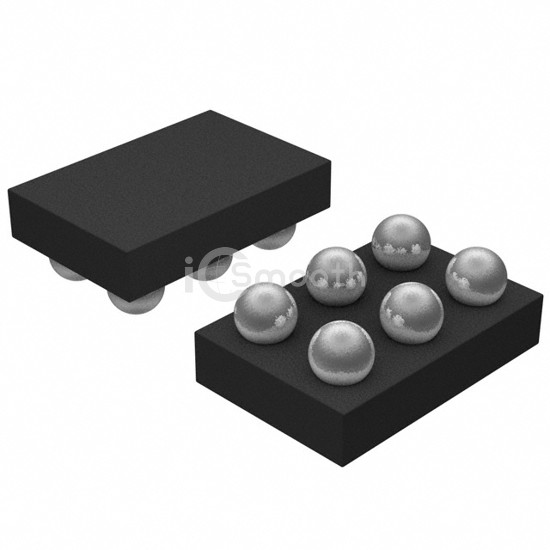

NCP156ABFCT100280T2G

onsemi

IC REG LINEAR 1V/2.8V 6WLCSP

NCP156ABFCT100280T2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 1V/2.8V 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-XFBGA, WLCSP, current - output 500mA, 250mA.

Datasheet Request a Quote

In Stock: 8,666

Tiered Pricing USD

1+ $0.5000 —

10+ $0.3500 -30%

25+ $0.3128 -37%

100+ $0.2716 -46%

250+ $0.2521 -50%

500+ $0.2403 -52%

1,000+ $0.2306 -54%

2,500+ $0.2203 -56% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1V, 2.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.15V @ 500mA, 0.16V @ 250mA
Current - Output	500mA, 250mA

Current - Quiescent (Iq)	-
Current - Supply (Max)	-
PSRR	70dB (1kHz), 92dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFBGA, WLCSP
Supplier Device Package	6-WLCSP (1.2x0.8)
