NCP1560HDR2

In Stock: 11,556

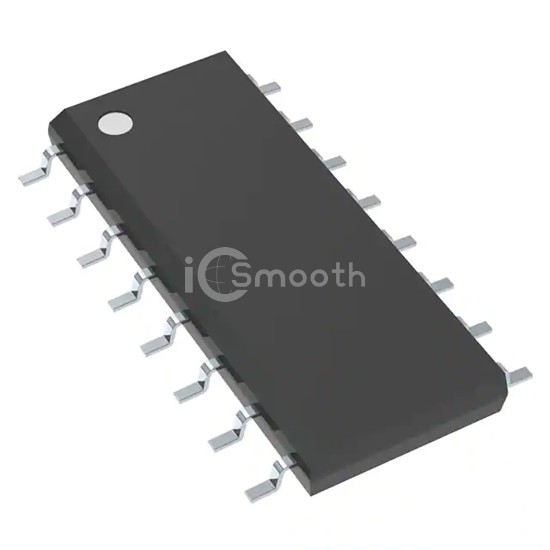

NCP1560HDR2 - onsemi - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: NCP1560HDR2 onsemi
NCP1560HDR2

onsemi

IC REG CTRLR FWRD CONV 16SOIC

NCP1560HDR2 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by onsemi. IC REG CTRLR FWRD CONV 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 21.5V ~ 150V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 11,556

Specifications

18 parameters
Product StatusObsolete
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive
TopologyForward Converter
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)21.5V ~ 150V
Frequency - Switching300kHz, 480kHz
Duty Cycle (Max)80%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Frequency Control, Ramp, Soft Start
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
