Name: NCP137AFCTC110T2G
Brand: onsemi
SKU: NCP137AFCTC110T2G
Price: 0.44 USD
Availability: InStock

REF: NCP137AFCTC110T2G onsemi

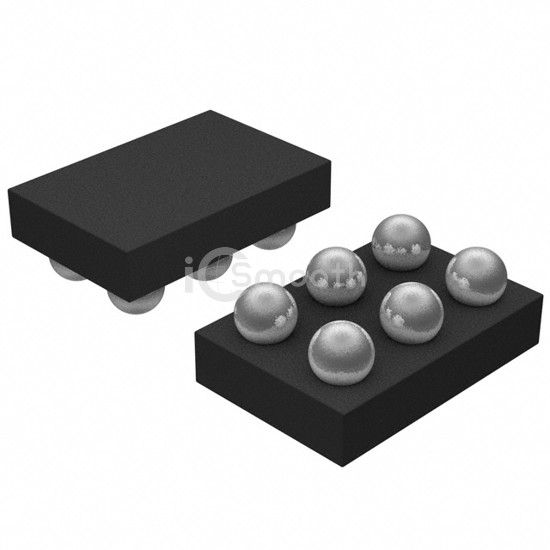

NCP137AFCTC110T2G

IC REG LINEAR 1.1V 700MA 6WLCSP

NCP137AFCTC110T2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 1.1V 700MA 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 6-XFBGA, WLCSP, current - output 700mA.

Datasheet Request a Quote

In Stock: 6,942

Tiered Pricing USD

1+ $0.4400 —

10+ $0.3100 -30%

25+ $0.2764 -37%

100+ $0.2394 -46%

250+ $0.2218 -50%

500+ $0.2113 -52%

1,000+ $0.2025 -54%

2,500+ $0.1933 -56% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.1V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.5V @ 700mA
Current - Output	700mA

Current - Quiescent (Iq)	50 µA
Current - Supply (Max)	-
PSRR	85dB ~ 75dB (1kHz)
Control Features	Enable
Protection Features	Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFBGA, WLCSP
Supplier Device Package	6-WLCSP (1.2x0.8)
