Name: NCP136AFCT110T2G
Brand: onsemi
SKU: NCP136AFCT110T2G
Price: 0.66 USD
Availability: InStock

REF: NCP136AFCT110T2G onsemi

NCP136AFCT110T2G

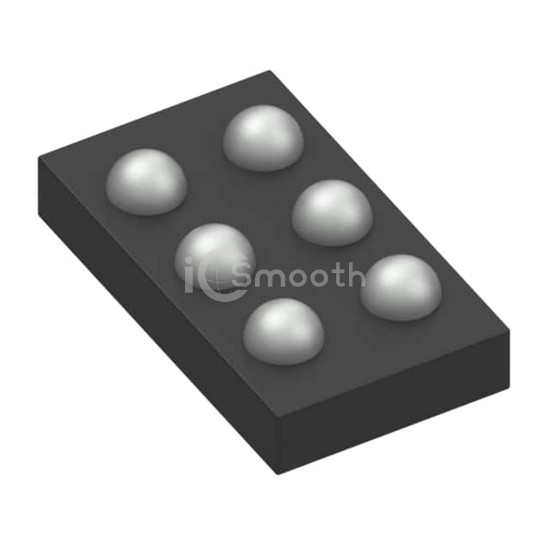

IC REG LINEAR 1.1V 700MA 6WLCSP

NCP136AFCT110T2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 1.1V 700MA 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 6-XFBGA, WLCSP, current - output 700mA.

Datasheet Request a Quote

In Stock: 2,222

Tiered Pricing USD

1+ $0.6600 —

10+ $0.4710 -29%

25+ $0.4224 -36%

100+ $0.3692 -44%

250+ $0.3438 -48%

500+ $0.3285 -50%

1,000+ $0.3159 -52%

2,500+ $0.3026 -54% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.1V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.06V @ 700mA
Current - Output	700mA

Current - Quiescent (Iq)	110 µA
Current - Supply (Max)	-
PSRR	75dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFBGA, WLCSP
Supplier Device Package	6-WLCSP (1.4x0.8)
