Name: NCID9411R2
Brand: onsemi
SKU: NCID9411R2
Price: 7.76 USD
Availability: InStock

REF: NCID9411R2 onsemi

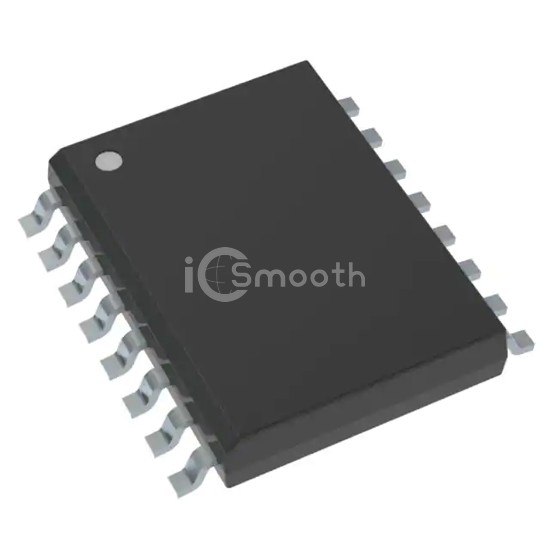

NCID9411R2

HIGH SPEED QUAD-CHANNEL DIGITAL

NCID9411R2 is a Digital Isolators manufactured by onsemi. HIGH SPEED QUAD-CHANNEL DIGITAL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.5V ~ 5.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,302

Tiered Pricing USD

1+ $7.7600 —

10+ $5.1860 -33%

25+ $4.5152 -42%

100+ $3.7567 -52%

250+ $3.3844 -56% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Type	I²C, SPI
Isolated Power	No
Number of Channels	4
Inputs - Side 1/Side 2	3/1
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	100kV/µs

Data Rate	10Mbps
Propagation Delay tpLH / tpHL (Max)	170ns, 170ns
Pulse Width Distortion (Max)	70ns
Rise / Fall Time (Typ)	3ns, 2ns
Voltage - Supply	2.5V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
