Name: NCID9411
Brand: onsemi
SKU: NCID9411
Price: 6.13 USD
Availability: InStock

REF: NCID9411 onsemi

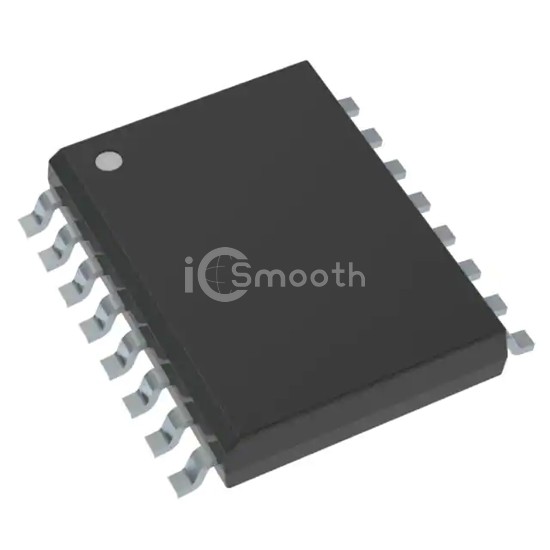

NCID9411

HIGH SPEED QUAD-CHANNEL DIGITAL

NCID9411 is a Digital Isolators manufactured by onsemi. HIGH SPEED QUAD-CHANNEL DIGITAL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.5V ~ 5.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 6,039

Tiered Pricing USD

1+ $6.1300 —

10+ $4.7060 -23%

50+ $4.1338 -33%

100+ $3.9567 -35%

250+ $3.7697 -39%

500+ $3.6570 -40%

1,000+ $3.5643 -42%

2,500+ $3.4664 -43% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Type	I²C, SPI
Isolated Power	No
Number of Channels	4
Inputs - Side 1/Side 2	3/1
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	100kV/µs

Data Rate	10Mbps
Propagation Delay tpLH / tpHL (Max)	170ns, 170ns
Pulse Width Distortion (Max)	70ns
Rise / Fall Time (Typ)	3ns, 2ns
Voltage - Supply	2.5V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
