Name: NCID9401
Brand: onsemi
SKU: NCID9401
Price: 6.98 USD
Availability: InStock

REF: NCID9401 onsemi

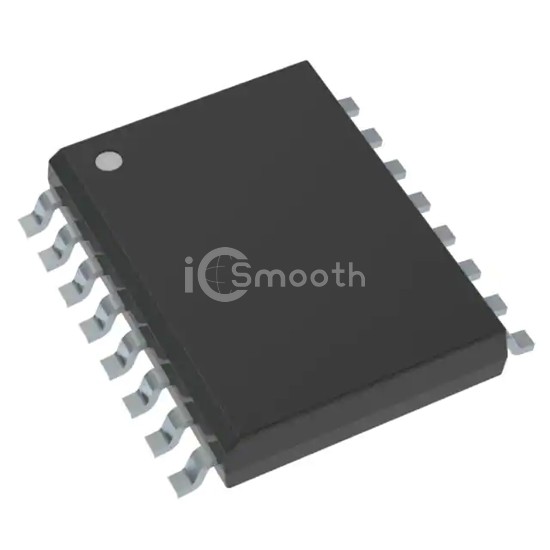

NCID9401

HIGH SPEED QUAD-CHANNEL DIGITAL

NCID9401 is a Digital Isolators manufactured by onsemi. HIGH SPEED QUAD-CHANNEL DIGITAL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.5V ~ 5.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,856

Tiered Pricing USD

1+ $6.9800 —

10+ $4.6340 -34%

50+ $3.6472 -48%

100+ $3.3324 -52%

250+ $2.9932 -57%

500+ $2.8125 -60% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Type	I²C, SPI
Isolated Power	No
Number of Channels	4
Inputs - Side 1/Side 2	4/0
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	100kV/µs

Data Rate	10Mbps
Propagation Delay tpLH / tpHL (Max)	200ns, 200ns
Pulse Width Distortion (Max)	80ns
Rise / Fall Time (Typ)	3ns, 2ns
Voltage - Supply	2.5V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
