Name: NCID9211
Brand: onsemi
SKU: NCID9211
Price: 6.18 USD
Availability: InStock

REF: NCID9211 onsemi

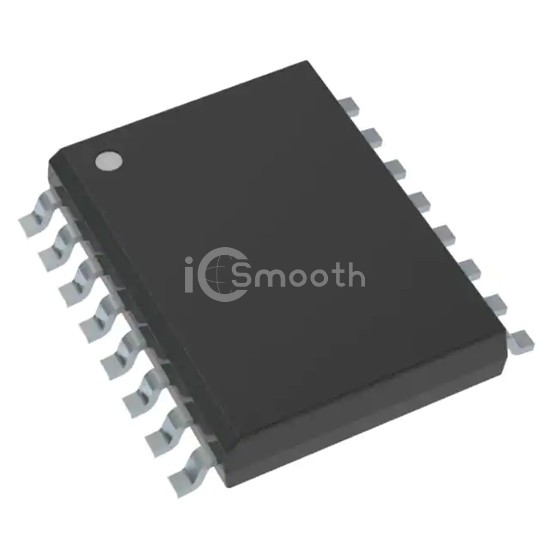

NCID9211

HIGH SPEED DUAL-CHANNEL, BI-DIRE

NCID9211 is a Digital Isolators manufactured by onsemi. HIGH SPEED DUAL-CHANNEL, BI-DIRE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - supply 2.5V ~ 5.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,809

Tiered Pricing USD

1+ $6.1800 —

10+ $4.7460 -23%

50+ $4.1698 -33%

100+ $3.9915 -35%

250+ $3.8032 -38%

500+ $3.6897 -40%

1,000+ $3.5962 -42%

2,500+ $3.4976 -43% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Type	I²C, SPI
Isolated Power	No
Number of Channels	2
Inputs - Side 1/Side 2	1/1
Channel Type	Bidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	100kV/µs

Data Rate	50Mbps
Propagation Delay tpLH / tpHL (Max)	25ns, 25ns
Pulse Width Distortion (Max)	10ns
Rise / Fall Time (Typ)	2.2ns, 3ns
Voltage - Supply	2.5V ~ 5.5V
Operating Temperature	-40°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
