Name: NCID9210
Brand: onsemi
SKU: NCID9210
Price: 7.74 USD
Availability: InStock

REF: NCID9210 onsemi

NCID9210

NCID9210R2

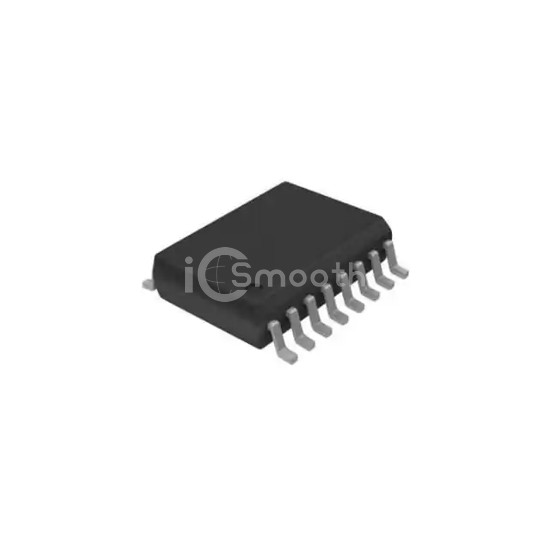

NCID9210 is a Digital Isolators manufactured by onsemi. NCID9210R2. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.5V ~ 5.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,585

Tiered Pricing USD

1+ $7.7400 —

10+ $5.1730 -33%

50+ $4.0920 -47%

100+ $3.7470 -52%

250+ $3.3754 -56%

500+ $3.2399 -58% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Type	I²C, SPI
Isolated Power	No
Number of Channels	2
Inputs - Side 1/Side 2	1/1
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	100kV/µs

Data Rate	50Mbps
Propagation Delay tpLH / tpHL (Max)	25ns, 25ns
Pulse Width Distortion (Max)	10ns
Rise / Fall Time (Typ)	2.2ns, 3ns
Voltage - Supply	2.5V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
