NCH-RSL15-512-101Q40-ACG

In Stock: 9,648

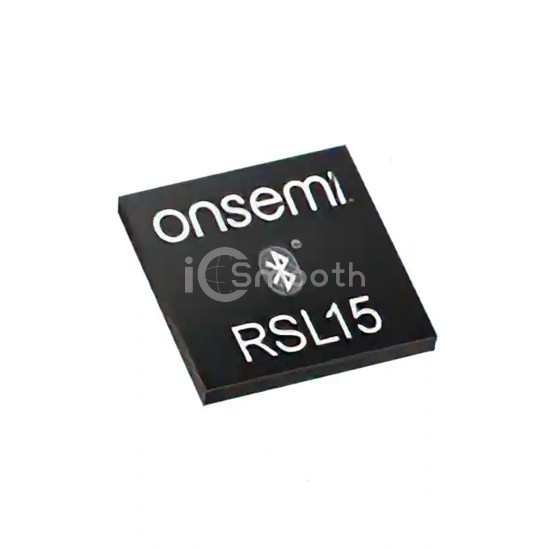

NCH-RSL15-512-101Q40-ACG - onsemi - RF Transceiver ICs
REF: NCH-RSL15-512-101Q40-ACG onsemi
NCH-RSL15-512-101Q40-ACG

onsemi

RSL15 QFN 512KB

NCH-RSL15-512-101Q40-ACG is a RF Transceiver ICs manufactured by onsemi. RSL15 QFN 512KB. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.2V ~ 3.6V, package / case 40-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,648

Tiered Pricing USD
1+ $7.5800 —
10+ $5.8620 -23%
25+ $5.4320 -28%
100+ $4.9586 -35%
250+ $4.7330 -38%
500+ $4.5970 -39% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/StandardBluetooth
ProtocolBluetooth v5.2
Modulation4-FSK, GFSK, MSK, O-QPSK
Frequency2.4GHz
Data Rate (Max)2Mbps
Power - Output6dBm
Sensitivity-102dBm
Memory Size512kB Flash, 80kB RAM
Serial InterfacesI²C, PCM, PWM, SPI, UART
GPIO15
Voltage - Supply1.2V ~ 3.6V
Current - Receiving2.7mA ~ 6.7mA
Current - Transmitting4.3mA ~ 24.1mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case40-VFQFN Exposed Pad
Supplier Device Package40-QFN (5x5)
