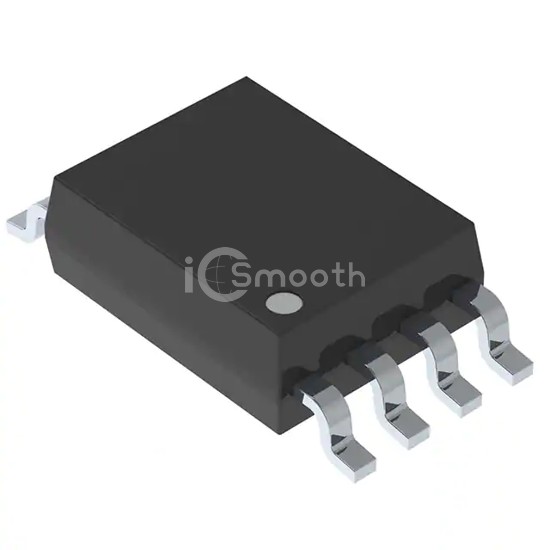

Name: NCD57090DDWR2G
Brand: onsemi
SKU: NCD57090DDWR2G
Price: 4.16 USD
Availability: InStock

REF: NCD57090DDWR2G onsemi

NCD57090DDWR2G

ISOLATED HIGH CURRENT GATE DRIVE

NCD57090DDWR2G is a Isolators - Gate Drivers manufactured by onsemi. ISOLATED HIGH CURRENT GATE DRIVE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency VDE.

Datasheet Request a Quote

In Stock: 4,091

Tiered Pricing USD

1+ $4.1600 —

10+ $2.6800 -36%

25+ $2.2948 -45%

100+ $1.8591 -55%

250+ $1.6452 -60%

500+ $1.5137 -64% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	100kV/µs (Max)
Propagation Delay tpLH / tpHL (Max)	90ns, 90ns
Pulse Width Distortion (Max)	25ns
Rise / Fall Time (Typ)	13ns, 13ns
Current - Output High, Low	6.5A, 6.5A

Current - Peak Output	6.5A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	0V ~ 32V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package	8-SOIC
Approval Agency	VDE
