NC7WZ86K8X

In Stock: 7,559

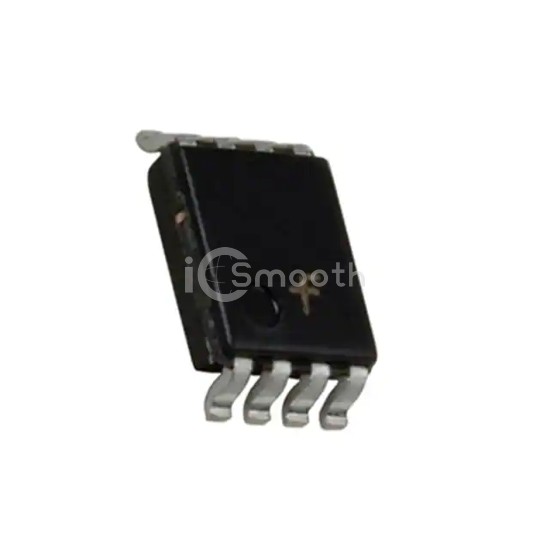

NC7WZ86K8X - onsemi - Logic - Gates and Inverters
REF: NC7WZ86K8X onsemi
NC7WZ86K8X

onsemi

IC GATE XOR 2CH 2-INP US8

NC7WZ86K8X is a Logic - Gates and Inverters manufactured by onsemi. IC GATE XOR 2CH 2-INP US8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).

Datasheet Request a Quote

In Stock: 7,559

Tiered Pricing USD
1+ $0.3000 —
10+ $0.2100 -30%
25+ $0.1864 -38%
100+ $0.1603 -47%
250+ $0.1478 -51%
500+ $0.1403 -53%
1,000+ $0.1342 -55% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeXOR (Exclusive OR)
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low-
Logic Level - High-
Max Propagation Delay @ V, Max CL4.2ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device PackageUS8
Package / Case8-VFSOP (0.091", 2.30mm Width)
