NC7WZ14FHX

In Stock: 9,296

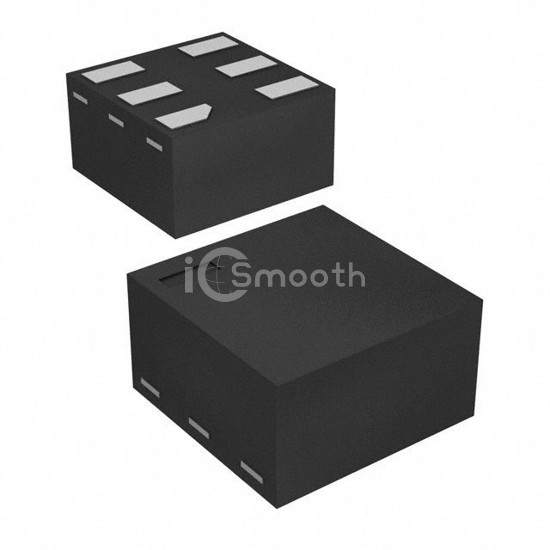

NC7WZ14FHX - onsemi - Logic - Gates and Inverters
REF: NC7WZ14FHX onsemi
NC7WZ14FHX

onsemi

IC INVERTER 2CH 2-INP 6MICROPAK2

NC7WZ14FHX is a Logic - Gates and Inverters manufactured by onsemi. IC INVERTER 2CH 2-INP 6MICROPAK2. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 9,296

Tiered Pricing USD
1+ $0.3300 —
10+ $0.2270 -31%
25+ $0.2020 -39%
100+ $0.1738 -47%
250+ $0.1605 -51%
500+ $0.1524 -54%
1,000+ $0.1458 -56%
2,500+ $0.1442 -56% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits2
Number of Inputs2
FeaturesSchmitt Trigger
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.2V ~ 1.2V
Logic Level - High1.4V ~ 3.6V
Max Propagation Delay @ V, Max CL4.9ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package6-MicroPak2™
Package / Case6-UFDFN
