NC7WZ132K8X

In Stock: 7,601

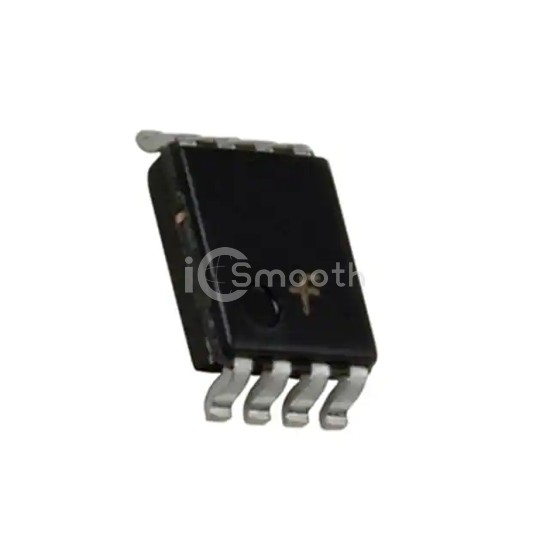

NC7WZ132K8X - onsemi - Logic - Gates and Inverters
REF: NC7WZ132K8X onsemi
NC7WZ132K8X

onsemi

IC GATE NAND SCHMITT 2CH 2IN US8

NC7WZ132K8X is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND SCHMITT 2CH 2IN US8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).

Datasheet Request a Quote

In Stock: 7,601

Tiered Pricing USD
1+ $0.3100 —
10+ $0.2130 -31%
25+ $0.1888 -39%
100+ $0.1624 -48%
250+ $0.1498 -52%
500+ $0.1422 -54%
1,000+ $0.1359 -56% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs2
FeaturesSchmitt Trigger
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.2V ~ 1.2V
Logic Level - High1.4V ~ 3.6V
Max Propagation Delay @ V, Max CL4.5ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device PackageUS8
Package / Case8-VFSOP (0.091", 2.30mm Width)
