NC7WZ02K8X

In Stock: 4,716

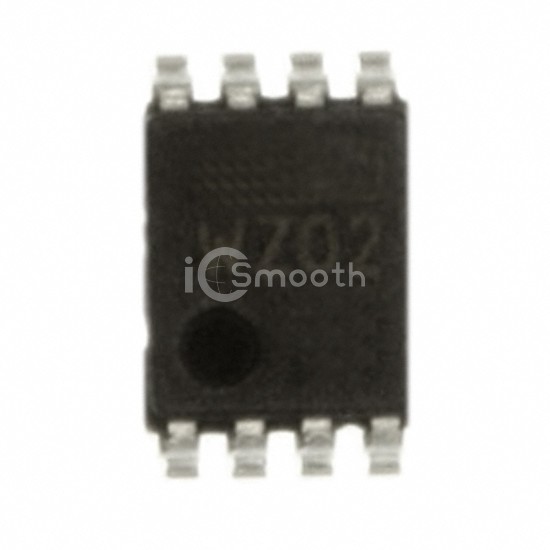

NC7WZ02K8X - onsemi - Logic - Gates and Inverters
REF: NC7WZ02K8X onsemi
NC7WZ02K8X

onsemi

IC GATE NOR 2CH 2-INP US8

NC7WZ02K8X is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NOR 2CH 2-INP US8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).

Datasheet Request a Quote

In Stock: 4,716

Tiered Pricing USD
1+ $0.3100 —
10+ $0.2110 -32%
25+ $0.1872 -40%
100+ $0.1608 -48%
250+ $0.1483 -52%
500+ $0.1408 -55%
1,000+ $0.1346 -57% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeNOR Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low-
Logic Level - High-
Max Propagation Delay @ V, Max CL3.7ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device PackageUS8
Package / Case8-VFSOP (0.091", 2.30mm Width)
