NC7SVL08FHX

In Stock: 3,063

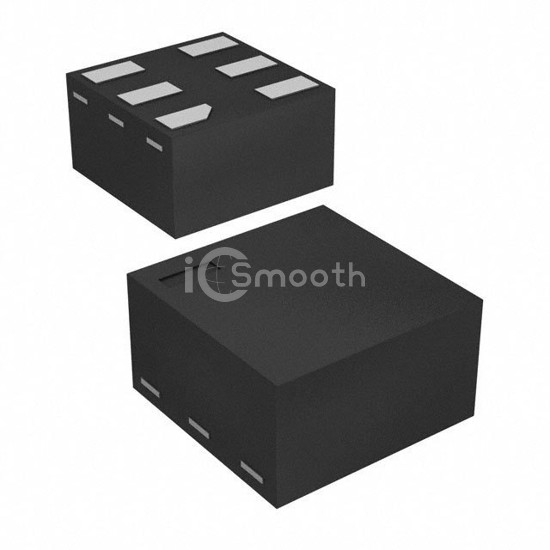

NC7SVL08FHX - onsemi - Logic - Gates and Inverters
REF: NC7SVL08FHX onsemi
NC7SVL08FHX

onsemi

IC GATE AND 1CH 2-INP 6MICROPAK2

NC7SVL08FHX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE AND 1CH 2-INP 6MICROPAK2. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.9V ~ 3.6V, package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 3,063

Tiered Pricing USD
1+ $0.3300 —
10+ $0.2300 -30%
25+ $0.2048 -38%
100+ $0.1763 -47%
250+ $0.1628 -51%
500+ $0.1547 -53%
1,000+ $0.1480 -55%
2,500+ $0.1409 -57% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeAND Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply0.9V ~ 3.6V
Current - Quiescent (Max)900 nA
Current - Output High, Low24mA, 24mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High0.9V ~ 1.5V
Max Propagation Delay @ V, Max CL3.5ns @ 3V, 30pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package6-MicroPak2™
Package / Case6-UFDFN
