NC7NZ14K8X

In Stock: 1,548

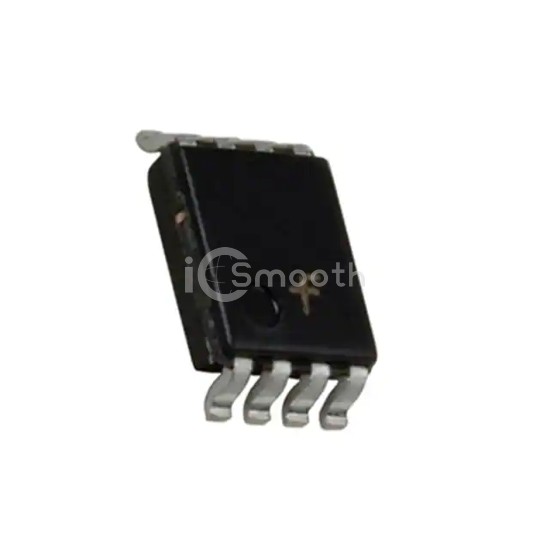

NC7NZ14K8X - onsemi - Logic - Gates and Inverters
REF: NC7NZ14K8X onsemi
NC7NZ14K8X

onsemi

IC INVERTER SCHMITT 3CH 3-IN US8

NC7NZ14K8X is a Logic - Gates and Inverters manufactured by onsemi. IC INVERTER SCHMITT 3CH 3-IN US8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).

Datasheet Request a Quote

In Stock: 1,548

Tiered Pricing USD
1+ $0.3100 —
10+ $0.2150 -31%
25+ $0.1904 -39%
100+ $0.1639 -47%
250+ $0.1512 -51%
500+ $0.1436 -54%
1,000+ $0.1373 -56% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits3
Number of Inputs3
FeaturesSchmitt Trigger
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.25V ~ 1.2V
Logic Level - High1.5V ~ 3.6V
Max Propagation Delay @ V, Max CL5.9ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device PackageUS8
Package / Case8-VFSOP (0.091", 2.30mm Width)
