MUN2231T1

In Stock: 93,000
MUN2231T1 - onsemi - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: MUN2231T1 onsemi

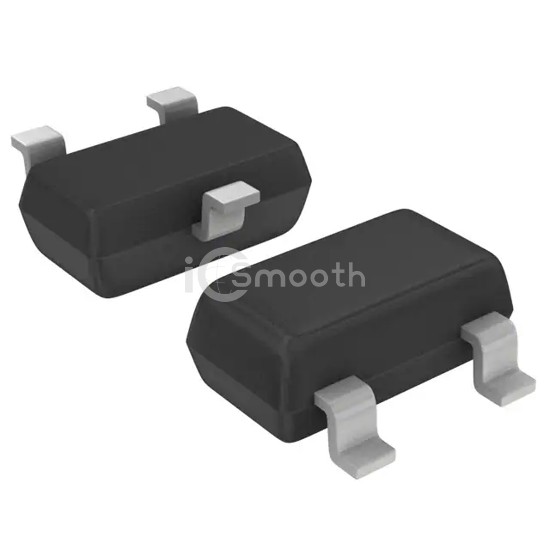

MUN2231T1

onsemi

TRANS PREBIAS NPN 338MW SC59

MUN2231T1 is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by onsemi. TRANS PREBIAS NPN 338MW SC59. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3, current - collector (ic) (max) 100 mA, power - max 338 mW.

Datasheet Request a Quote

In Stock: 93,000

Specifications

14 parameters
Product StatusObsolete
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)2.2 kOhms
Resistor - Emitter Base (R2)2.2 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce8 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 5mA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max338 mW
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSC-59
