Name: MTY100N10E
Brand: onsemi
SKU: MTY100N10E
Availability: InStock

REF: MTY100N10E onsemi

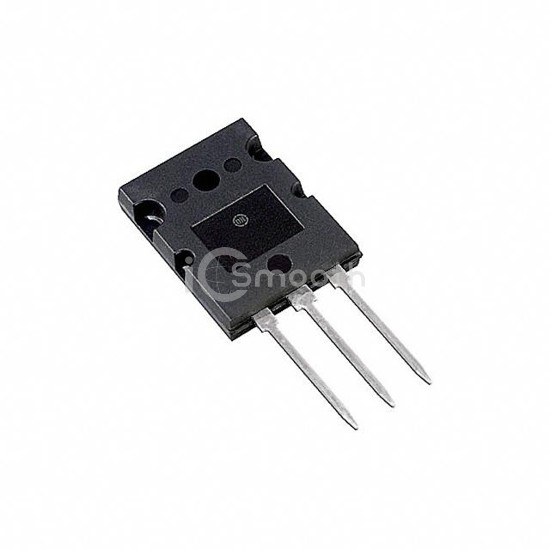

MTY100N10E

MOSFET N-CH 100V 100A TO264

MTY100N10E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 100A TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA.

Datasheet Request a Quote

In Stock: 1,506

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	11mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	378 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	10640 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-264
Package / Case	TO-264-3, TO-264AA
