MSD2714AT1G

In Stock: 9,280

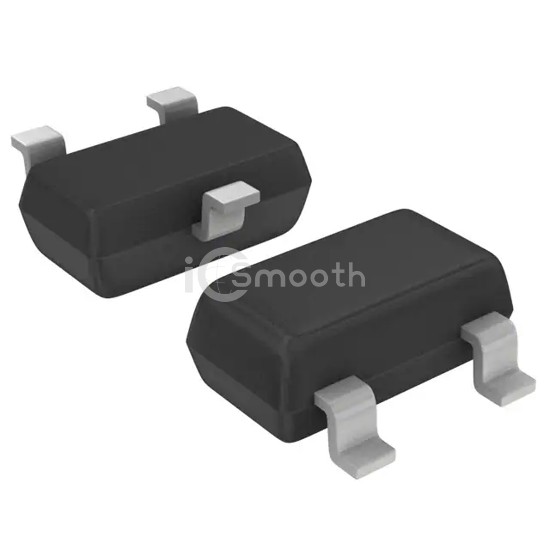

MSD2714AT1G - onsemi - Transistors - Bipolar (BJT) - RF
REF: MSD2714AT1G onsemi
MSD2714AT1G

onsemi

RF TRANS NPN 25V 650MHZ SC59

MSD2714AT1G is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF TRANS NPN 25V 650MHZ SC59. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3, power - max 225mW.

Datasheet Request a Quote

In Stock: 9,280

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)25V
Frequency - Transition650MHz
Noise Figure (dB Typ @ f)-
Gain-
Power - Max225mW
DC Current Gain (hFE) (Min) @ Ic, Vce90 @ 1mA, 6V
Current - Collector (Ic) (Max)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSC-59
