MPSW06G

In Stock: 56,683

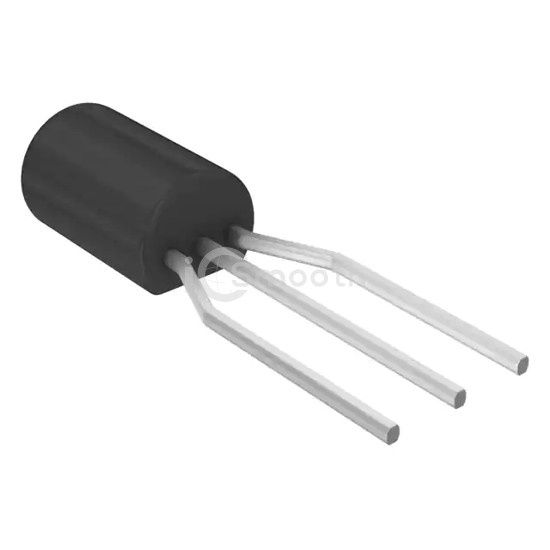

MPSW06G - onsemi - Transistors - Bipolar (BJT) - Single
REF: MPSW06G onsemi
MPSW06G

onsemi

TRANS NPN 80V 0.5A TO92

MPSW06G is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 80V 0.5A TO92. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 Long Body, current - collector (ic) (max) 500 mA.

Datasheet Request a Quote

In Stock: 56,683

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic400mV @ 10mA, 250mA
Current - Collector Cutoff (Max)500nA
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 250mA, 1V
Power - Max1 W
Frequency - Transition50MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Long Body
Supplier Device PackageTO-92 (TO-226)
