MMVL809T1G

In Stock: 48,000

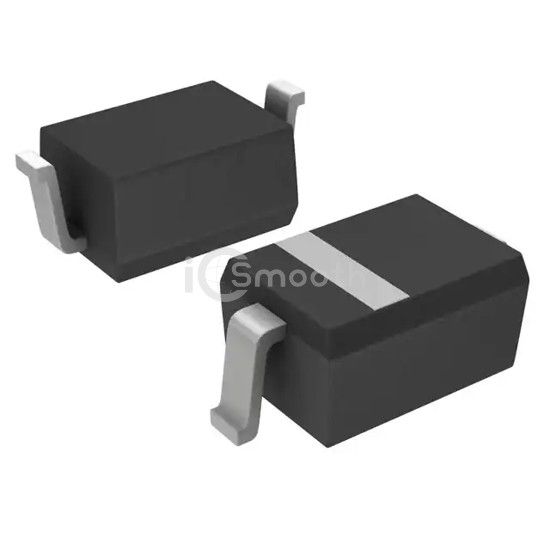

MMVL809T1G - onsemi - Diodes - Variable Capacitance (Varicaps, Varactors)
REF: MMVL809T1G onsemi
MMVL809T1G

onsemi

DIODE PIN SWITCHING 20V SOD-323

MMVL809T1G is a Diodes - Variable Capacitance (Varicaps, Varactors) manufactured by onsemi. DIODE PIN SWITCHING 20V SOD-323. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 48,000

Specifications

11 parameters
Product StatusObsolete
Capacitance @ Vr, F6.1pF @ 2V, 1MHz
Capacitance Ratio2.6
Capacitance Ratio ConditionC2/C8
Voltage - Peak Reverse (Max)20 V
Diode TypeSingle
Q @ Vr, F75 @ 3V, 500MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
