MJD32CTF_NBDD002

In Stock: 3,110

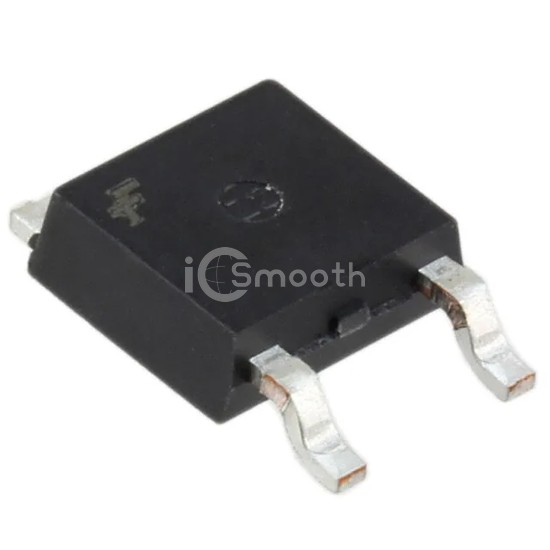

MJD32CTF_NBDD002 - onsemi - Transistors - Bipolar (BJT) - Single
REF: MJD32CTF_NBDD002 onsemi
MJD32CTF_NBDD002

onsemi

TRANS PNP 100V 3A DPAK

MJD32CTF_NBDD002 is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS PNP 100V 3A DPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 3 A.

Datasheet Request a Quote

In Stock: 3,110

Specifications

13 parameters
Product StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)100 V
Vce Saturation (Max) @ Ib, Ic1.2V @ 375mA, 3A
Current - Collector Cutoff (Max)50µA
DC Current Gain (hFE) (Min) @ Ic, Vce10 @ 3A, 4V
Power - Max1.56 W
Frequency - Transition3MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageD-Pak
