Name: MID400V
Brand: onsemi
SKU: MID400V
Price: 3.79 USD
Availability: InStock

REF: MID400V onsemi

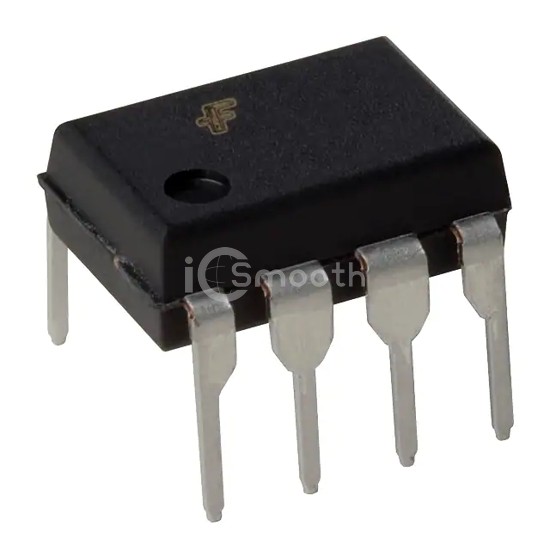

MID400V

OPTOISO 2.5KV OPN COLLECTOR 8DIP

MID400V is a Special Purpose manufactured by onsemi. OPTOISO 2.5KV OPN COLLECTOR 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 7V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 6,789

Specifications

17 parameters

Product Status	Last Time Buy
Type	AC Line Monitor
Number of Channels	1
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	-
Input Type	AC, DC
Current - Output / Channel	20mA
Propagation Delay tpLH / tpHL (Max)	1ms, 1ms (Typ)
Rise / Fall Time (Typ)	-

Voltage - Forward (Vf) (Typ)	1.5 V
Current - DC Forward (If) (Max)	30 mA
Voltage - Supply	7V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
Approval Agency	UR, VDE
