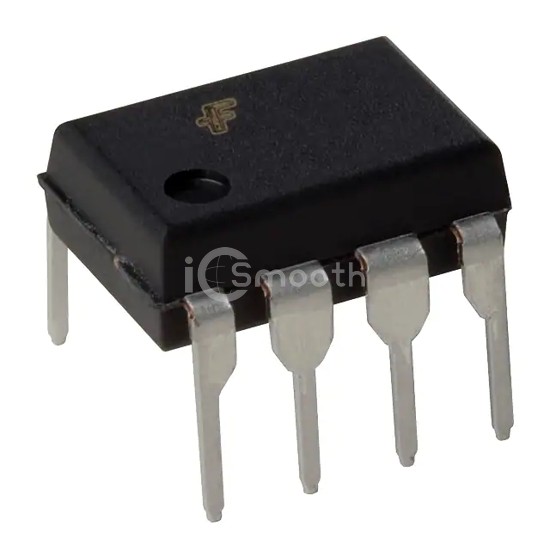

Name: MCT6
Brand: onsemi
SKU: MCT6
Price: 0.91 USD
Availability: InStock

REF: MCT6 onsemi

MCT6

OPTOISOLATOR 5KV 2CH TRANS 8-DIP

MCT6 is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISOLATOR 5KV 2CH TRANS 8-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 8,291

Tiered Pricing USD

1+ $0.9100 —

50+ $0.5114 -44%

100+ $0.4694 -48%

500+ $0.3942 -57%

1,000+ $0.3696 -59%

2,000+ $0.3487 -62%

5,000+ $0.3258 -64%

10,000+ $0.3116 -66%

25,000+ $0.2961 -67% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	2.4µs, 2.4µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	30V
Current - Output / Channel	30mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
