MCH6336-TL-H

In Stock: 60,000

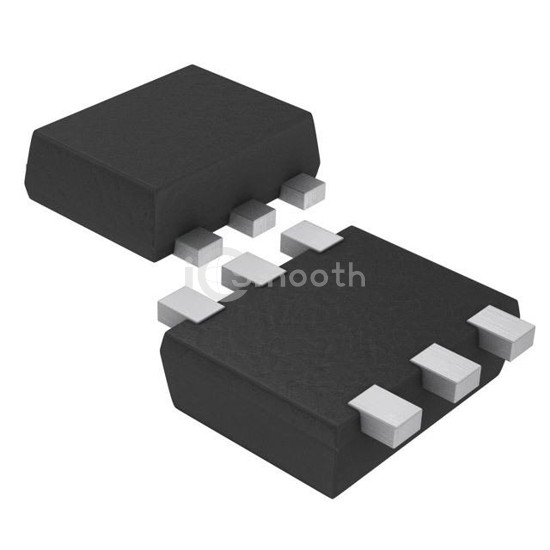

MCH6336-TL-H - onsemi - Transistors - FETs, MOSFETs - Single
REF: MCH6336-TL-H onsemi
MCH6336-TL-H

onsemi

MOSFET P-CH 12V 5A 6MCPH

MCH6336-TL-H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 12V 5A 6MCPH. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 60,000

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs43mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs6.9 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds660 pF @ 6 V
FET Feature-
Power Dissipation (Max)1.5W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-MCPH
Package / Case6-SMD, Flat Leads
