Name: MCH6336-TL-E-ON
Brand: onsemi
SKU: MCH6336-TL-E-ON
Price: 0.16 USD
Availability: InStock

REF: MCH6336-TL-E-ON onsemi

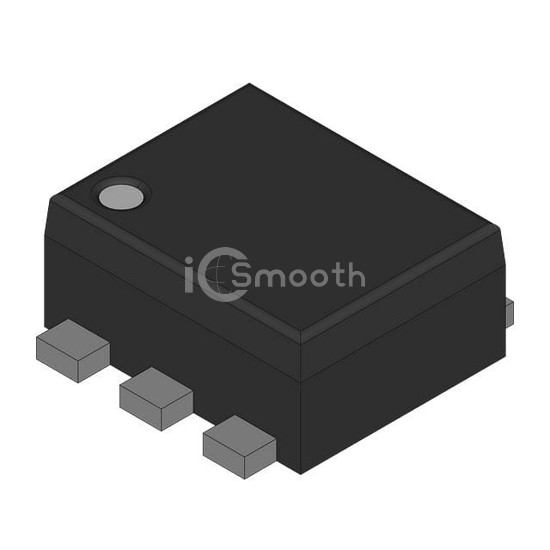

MCH6336-TL-E-ON

MOSFET P-CH 12V 5A SC88FL/ MCPH6

MCH6336-TL-E-ON is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 12V 5A SC88FL/ MCPH6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 14,996

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	43mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	6.9 nC @ 4.5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	660 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	1.5W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-88FL/ MCPH6
Package / Case	6-SMD, Flat Leads
