Name: MCH6320-TL-W
Brand: onsemi
SKU: MCH6320-TL-W
Availability: InStock

REF: MCH6320-TL-W onsemi

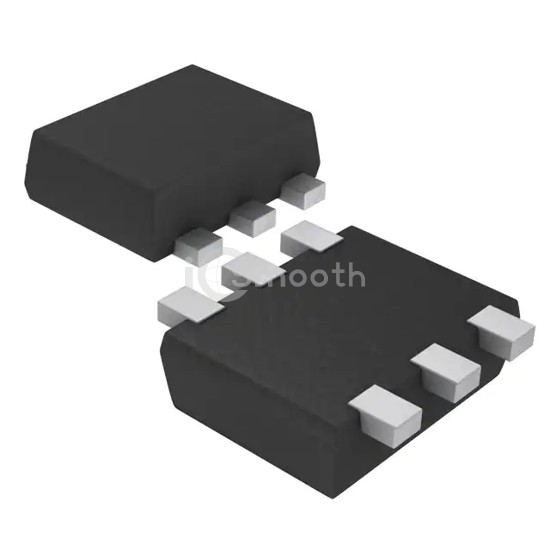

MCH6320-TL-W

MOSFET P-CH 12V 3.5A MCPH6

MCH6320-TL-W is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 12V 3.5A MCPH6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 2,410

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	70mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	5.6 nC @ 4.5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	405 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	1.5W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-88FL/MCPH6
Package / Case	6-TSSOP, SC-88, SOT-363
